Product Description:
STTC- and SMTC- Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200, and MX-5200 series soldering systems. All cartridges are available in three temperature ranges: 600-series nominally 330 ˚C, 700-series nominally 390 ˚C, and 800-series nominally 450 ˚C. The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx. Metcal recommends the 700-series for the majority of applications. The 600-series is for light load or low-temperature applications, the 800-series is for high-temperature and thermally demanding applications. They can be used with leaded and lead-free solder. Metcal SmartHeat® Technology automatically adjusts power levels during each soldering operation.

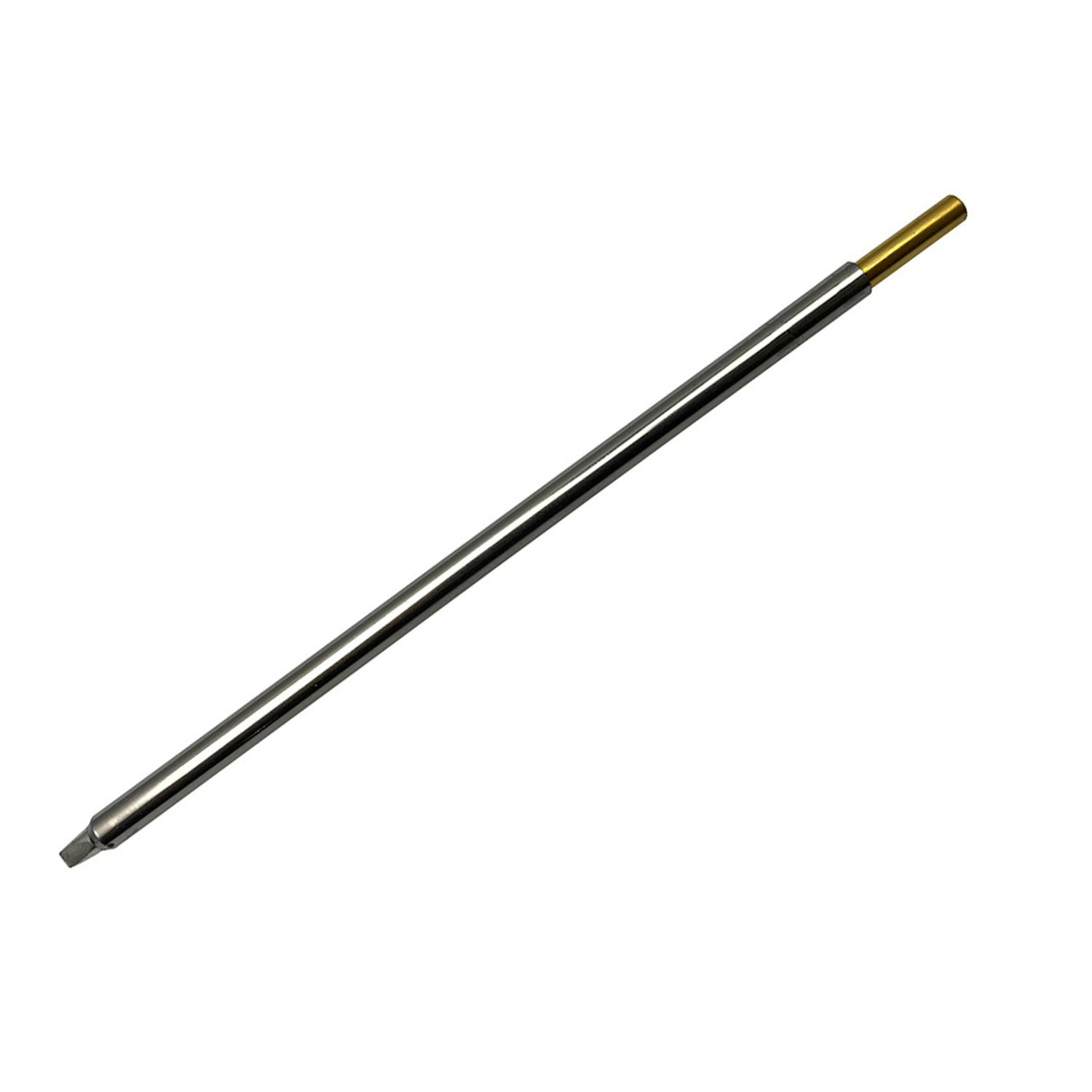

The Metcal STTC-136P Specifications:
- Brand: Metcal®
- Series: STTC Series
- Product Type: Soldering Tip
- Tip Shape: Chisel
- Tip Size: 0.1in
- Tip Length: 0.24in
- Tip Angle: 30°
- For Use With: MX-500 Systems, MX-5000 Systems, MX-5200 Systems, MX-RM3E Hand-Piece, MX-H1-AV Hand-Piece
